Mechanical reinforcement
The woven carrier supports robust bundling, holding and restraint.

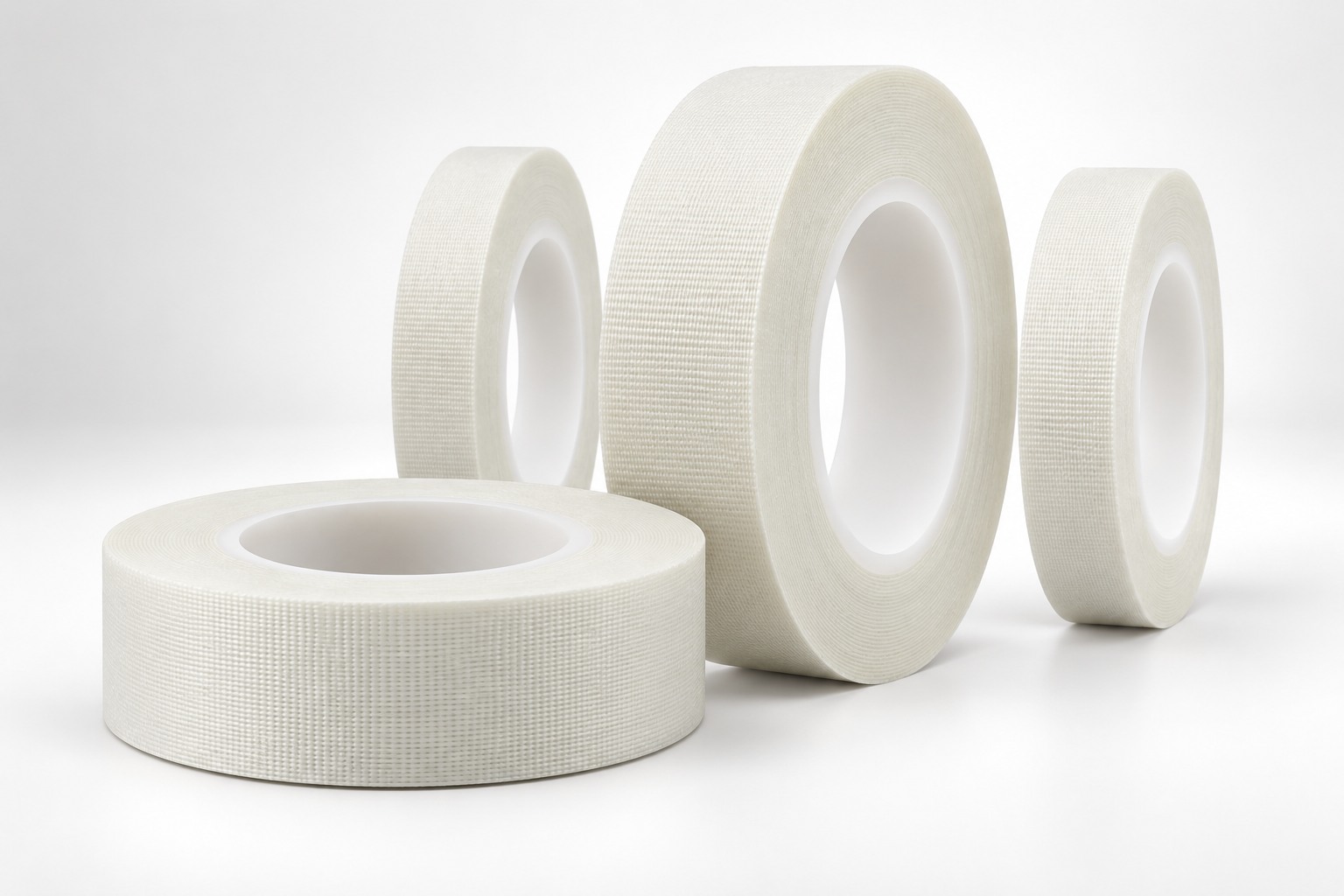

ATR-GC-S SERIES · HIGH-TEMPERATURE REINFORCEMENT
Glass Cloth Silicone Adhesive Tape
Woven glass cloth with silicone pressure-sensitive adhesive for robust insulation, fixation and abrasion protection at elevated temperature.
BackingWoven glass cloth backing
AdhesiveSilicone pressure-sensitive adhesive
SupplyRolls & converted parts
01 · THE MATERIAL SYSTEM
Mechanical reinforcement for demanding electrical assemblies.
ATR-GC-S combines the tensile and abrasion resistance of woven glass cloth with a silicone adhesive selected for elevated-temperature contact.
It is used where a thin film tape may not provide enough mechanical reinforcement. Geometry, edge loading, electrical duty and temperature exposure must be evaluated within the complete assembly.
02 · PERFORMANCE IN CONTEXT
What this construction helps an engineer control.
Elevated-temperature contact
Silicone PSA is selected for demanding electrical and thermal environments.
Abrasion protection
Glass cloth protects local interfaces exposed to rubbing or handling stress.
Dimensional stability
Limited stretch supports controlled placement and retained geometry.
Electrical support
The construction contributes insulation and securing within a validated system.
03 · APPLICATION DIRECTIONS
See the tape at its functional interface.
Representative tasks are drawn from the supplied product documentation. They identify the tape role without prescribing a universal customer construction.

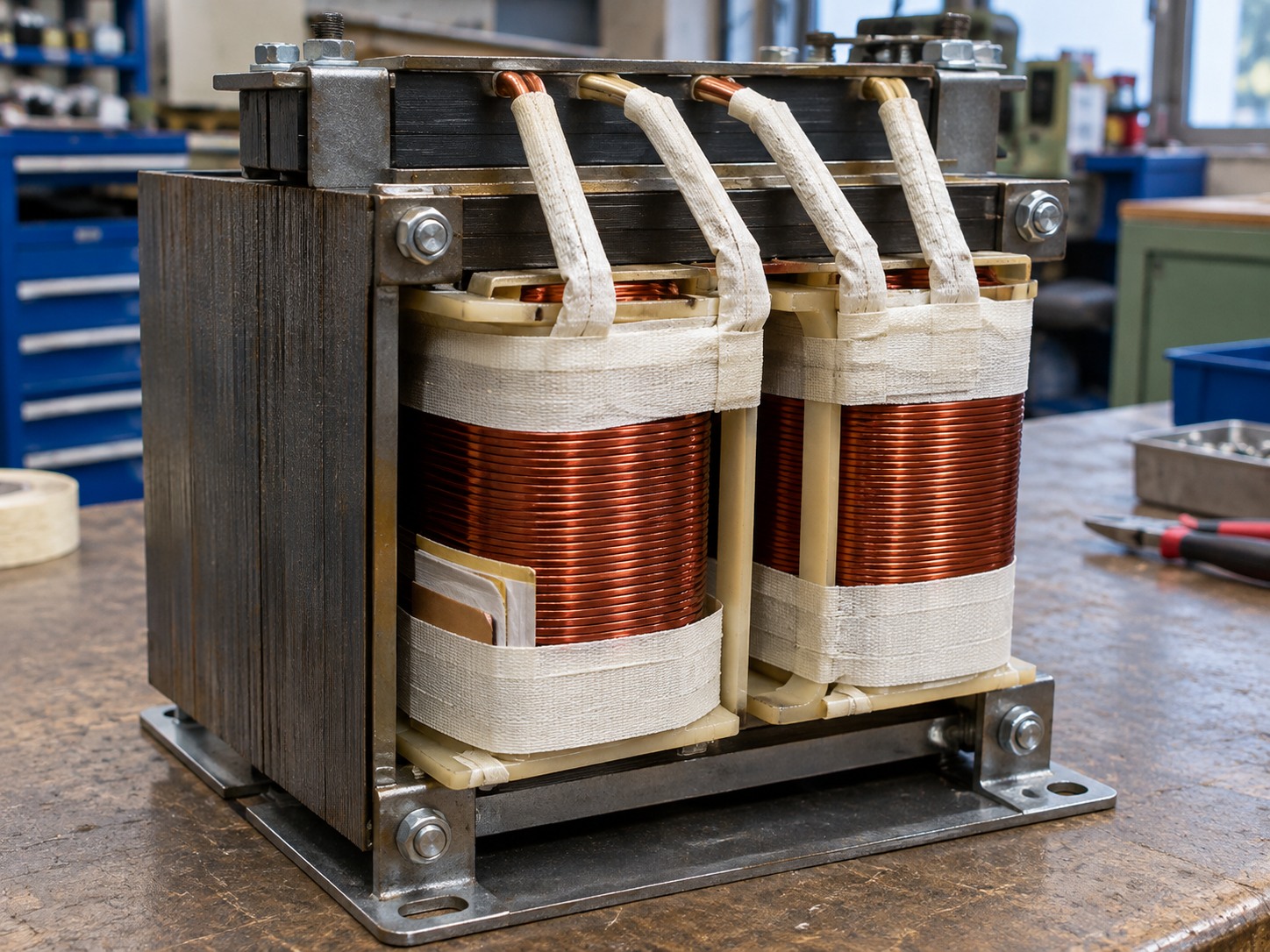

TRANSFORMER INSULATION
Winding and lead reinforcement
Reinforces and insulates selected winding, lead and connection zones within the approved transformer construction.

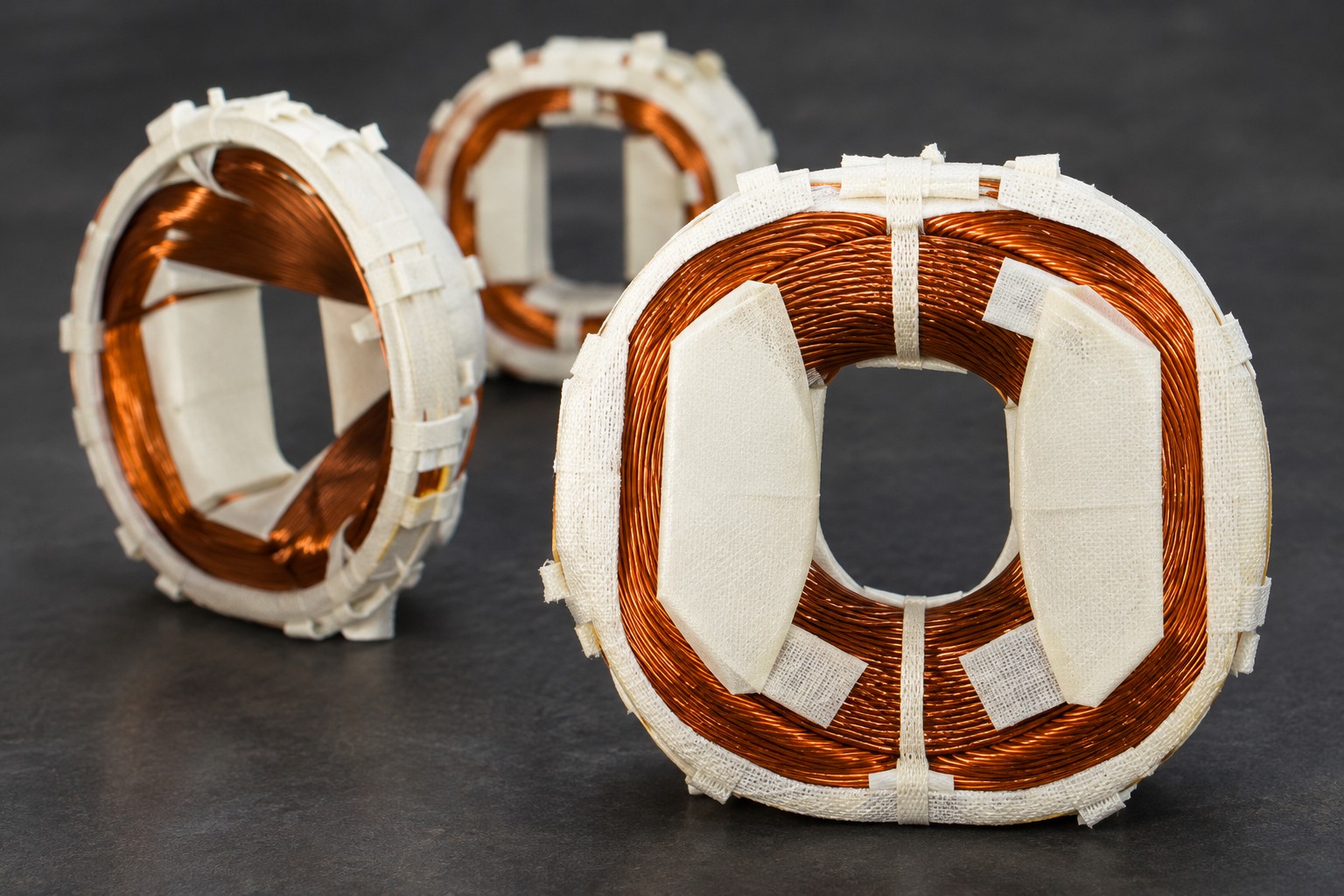

MOTOR WINDINGS
Coil insulation and banding
Adds local restraint and abrasion-resistant insulation around selected end turns and winding regions.

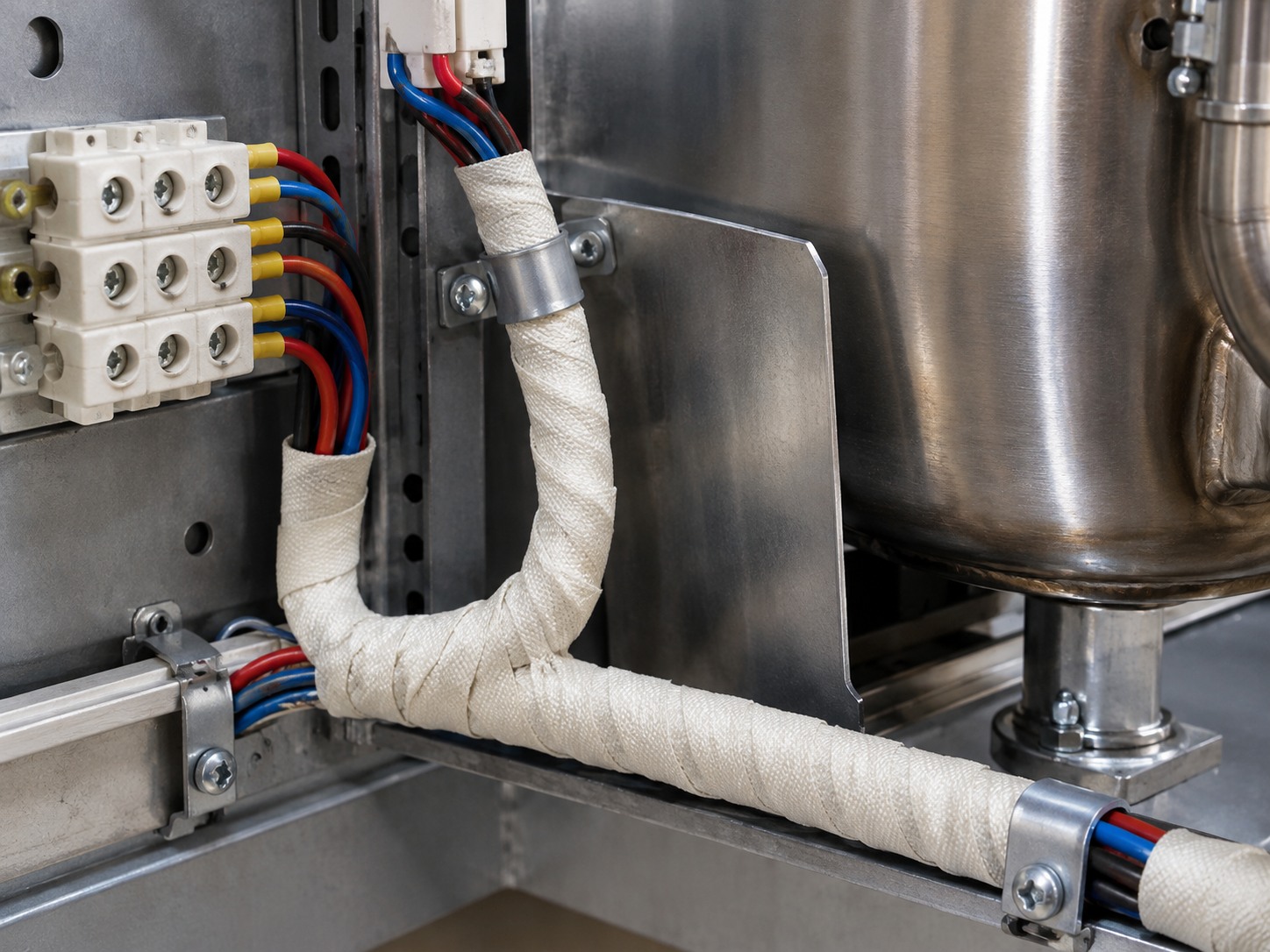

HEATED EQUIPMENT
High-temperature lead wrapping
Protects and bundles leads routed near heated equipment, subject to the actual thermal and electrical duty.

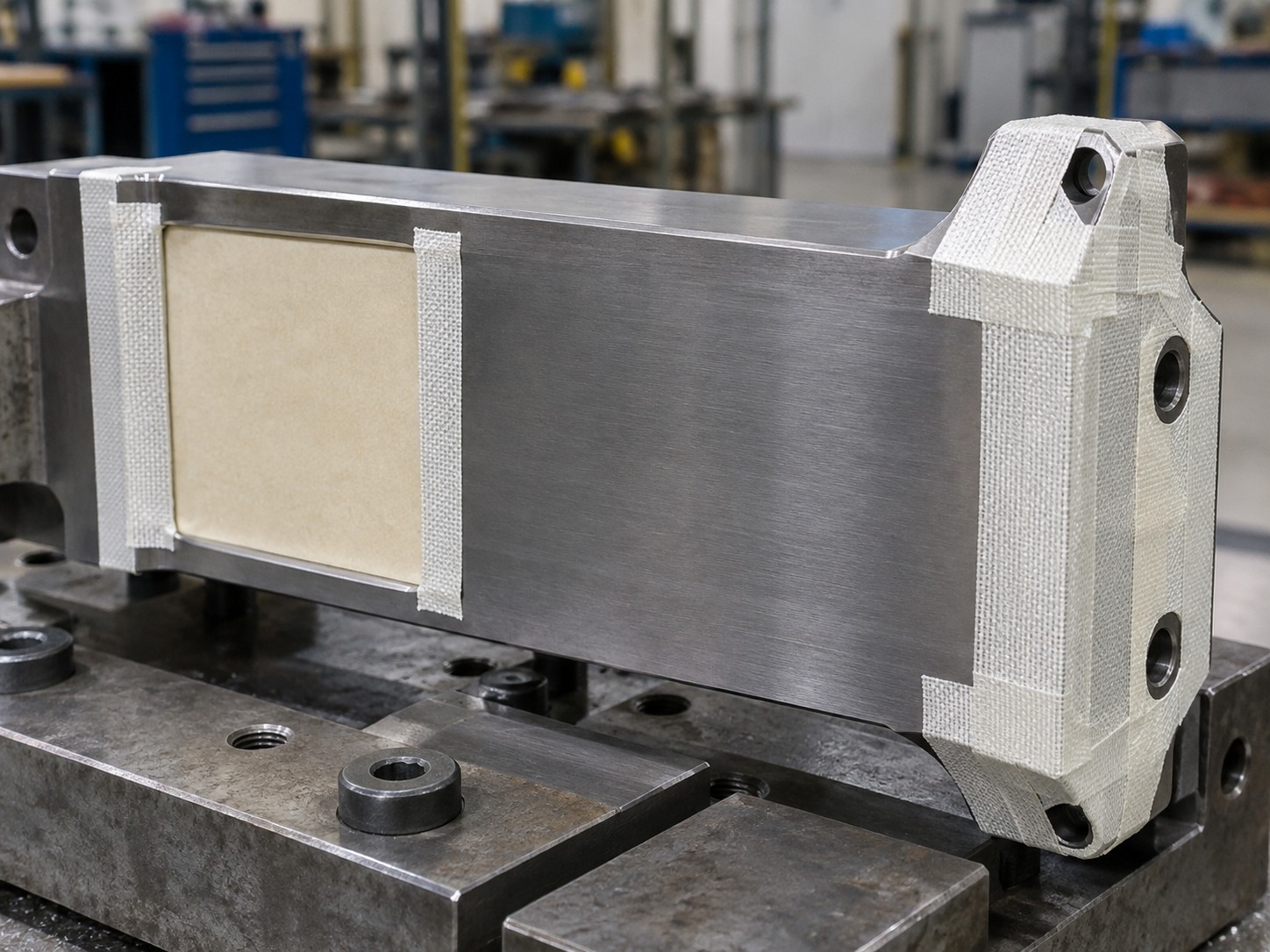

PROCESS CONTROL
Insulation securing and protection
Holds insulation materials and shields selected surfaces during validated high-temperature assembly or processing.
Geometry, electrical duty, temperature and mechanical load must be confirmed within the actual assembly.

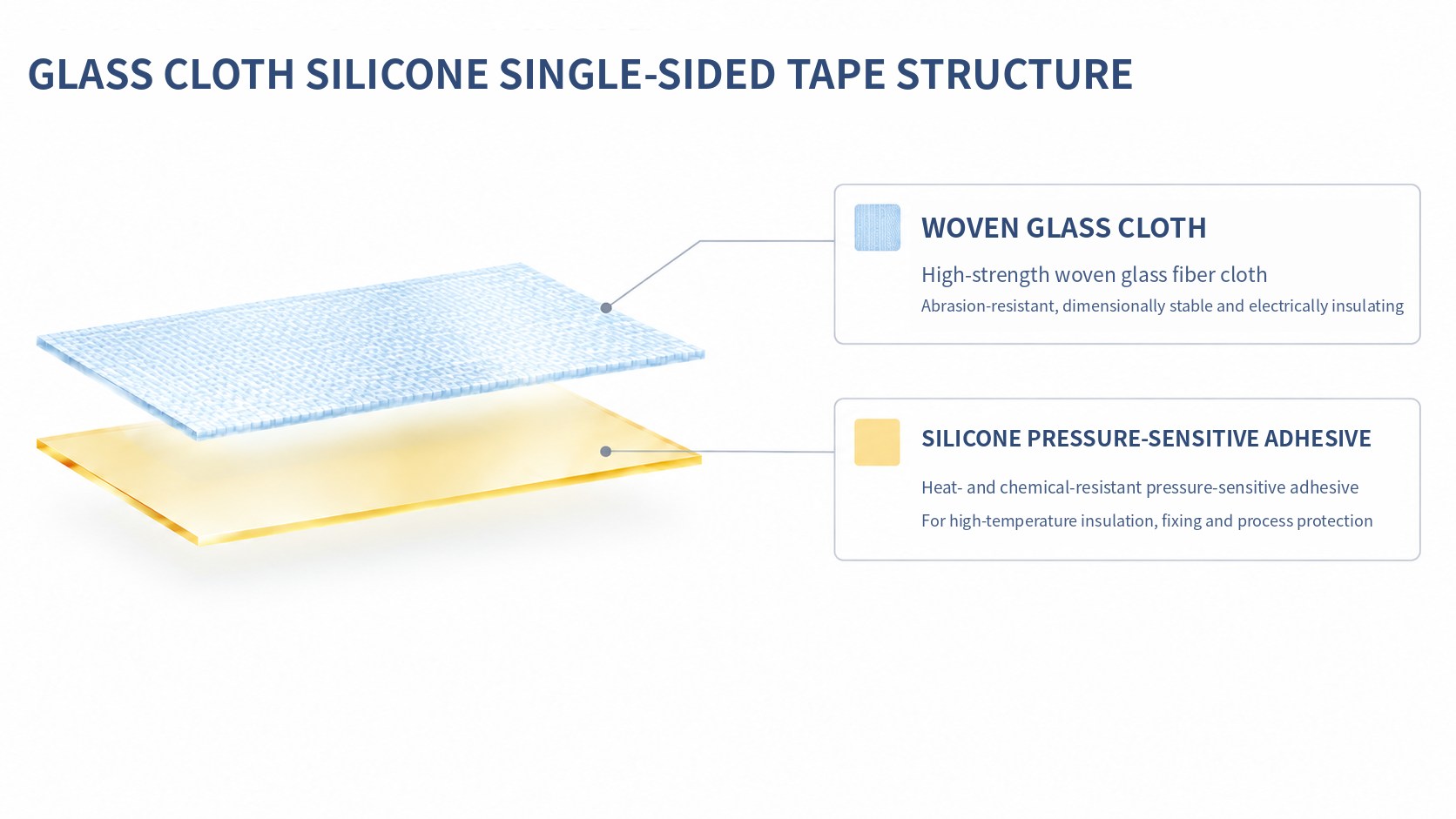

04 · TAPE CONSTRUCTION
Backing and adhesive designed as one system.
Woven glass cloth provides the structural layer. Silicone PSA brings the reinforcement into stable contact in elevated-temperature environments.
- Woven glass clothTensile strength, abrasion resistance and dimensional stability.
- Silicone PSAHeat-resistant contact, fixation and electrical assembly support.
Illustration is enlarged for identification and does not represent actual layer-thickness ratio.
05 · SELECTION CONTEXT
The right grade starts with the process.
Bonding surface
Material, finish, cleanliness and surface energy
Thermal profile
Peak temperature, dwell time and repeated exposure
Application geometry
Flat face, edge, curve, winding or converted shape
Functional duty
Mask, insulate, secure, protect or reinforce
End condition
Remain in the assembly or remove after processing
Supply format
Width, length, core, liner, geometry and packing

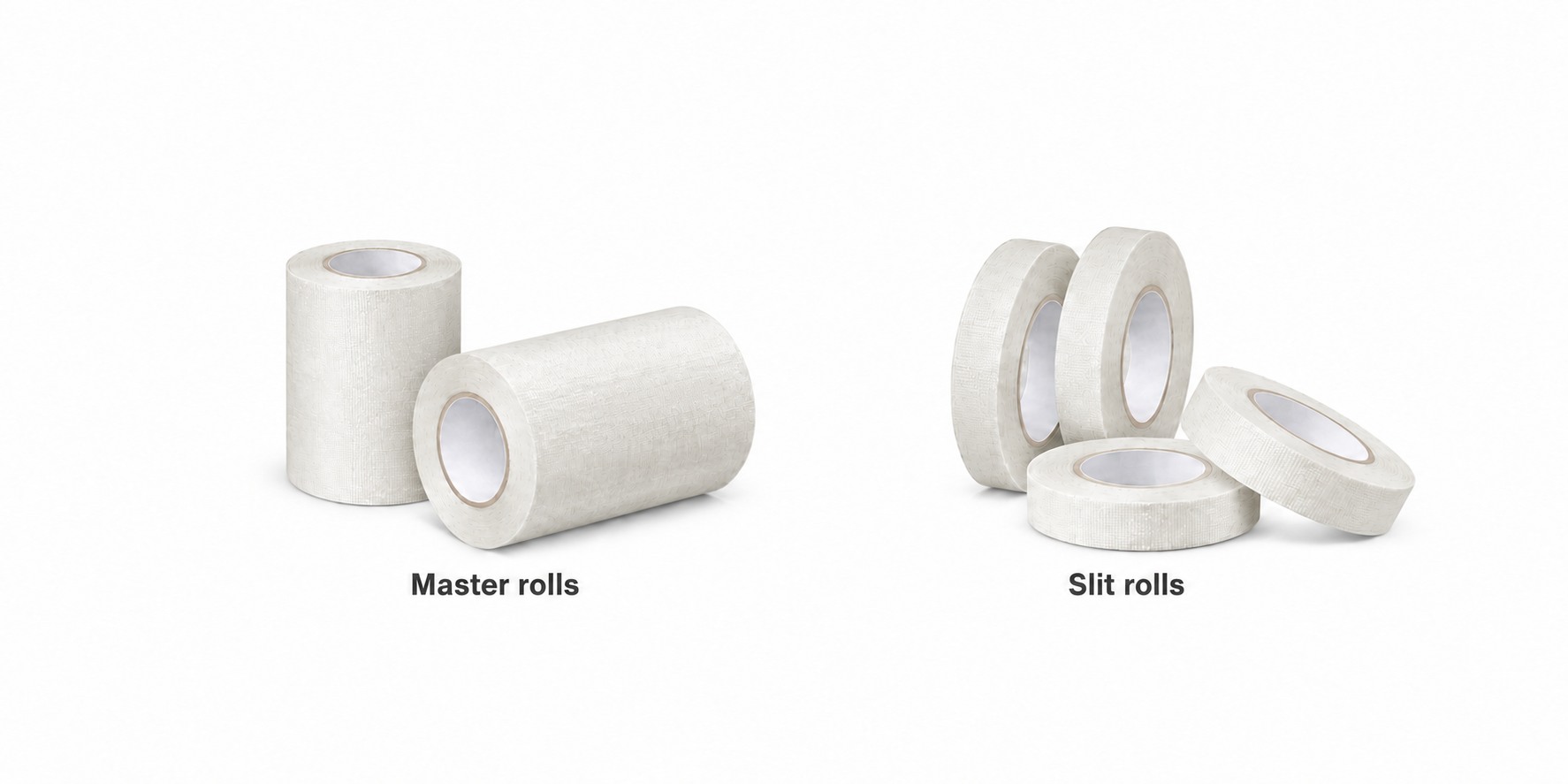

06 · SUPPLY & CONVERTING
From master roll to placement-ready part.
Available as production-width master rolls and slit rolls. Width, length, core and packing are aligned with handling and assembly needs.
- Width
- 5–1040 mm or customised
- Length
- 33–100 m or on request
- Core
- 76 mm plastic core
- Packaging
- Cartons and pallets
07 · APPLICATION PATHWAYS
Continue from the tape task to the wider material system.
01
Motor & Transformer
Woven reinforcement, local banding and insulation securing at selected winding, end-turn or lead regions under the confirmed thermal duty.
Explore application →02Electronics & Precision Converting
Mechanically reinforced insulation and local process protection where abrasion, electrical duty and elevated-temperature contact must be considered together.
