Reinforced carrier
Glass fabric adds tensile support and dimensional stability at demanding contact zones.
ATR-TF-QH SERIES · REINFORCED NON-STICK SURFACE

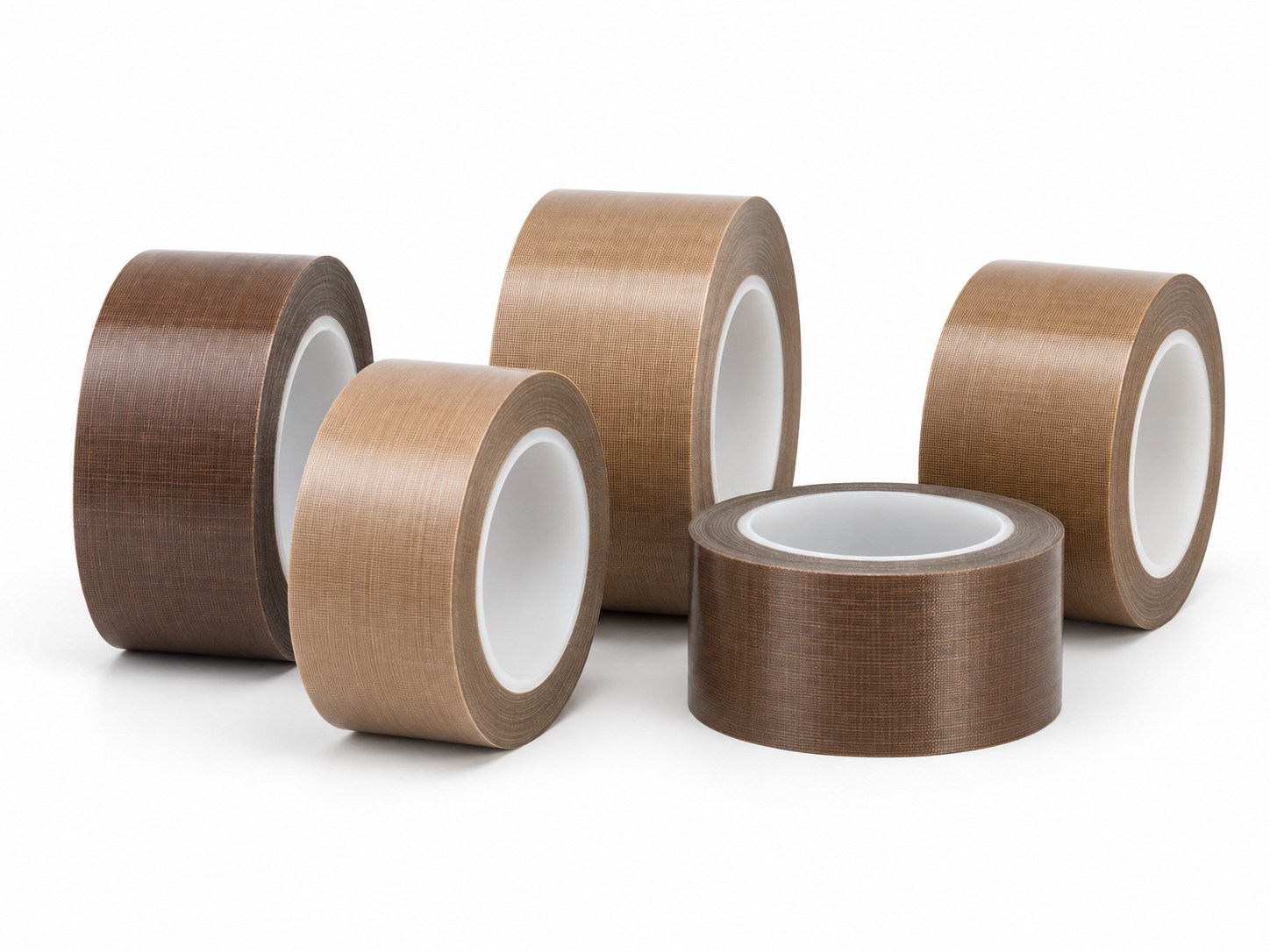

PTFE-Coated Glass Fabric Tape
PTFE-coated glass fabric with silicone pressure-sensitive adhesive for durable release surfaces, low-friction lining and robust process protection.
BackingPTFE-coated glass fabric
AdhesiveSilicone pressure-sensitive adhesive
SupplyRolls & converted parts
01 · THE MATERIAL SYSTEM
PTFE surface behaviour with a reinforced woven carrier.
ATR-TF-QH combines a PTFE-coated glass-fabric backing with silicone PSA for process interfaces that need both non-stick performance and mechanical reinforcement.
The woven carrier gives the tape more body and abrasion resistance than a pure film construction. The coated face manages release and friction, while the adhesive secures the material to the selected machine or contact surface.
02 · PERFORMANCE IN CONTEXT
What this construction helps an engineer control.
Non-stick surface
The PTFE coating helps control sticking on validated sealing and processing equipment.
Low-friction lining
The coated face can reduce drag in compatible hoppers, chutes and guides.
Abrasion resistance
The woven construction supports longer service at mechanically active interfaces.
Heat-resistant contact
Silicone PSA maintains placement through the approved temperature and dwell profile.
03 · APPLICATION DIRECTIONS
See the tape at its functional interface.
Representative tasks are drawn from the supplied product documentation. They identify the tape role without prescribing a universal customer construction.
HEAT-SEALING EQUIPMENT
Reinforced contact-surface covering
Protects selected sealing bars and contact regions with a durable, replaceable non-stick layer.

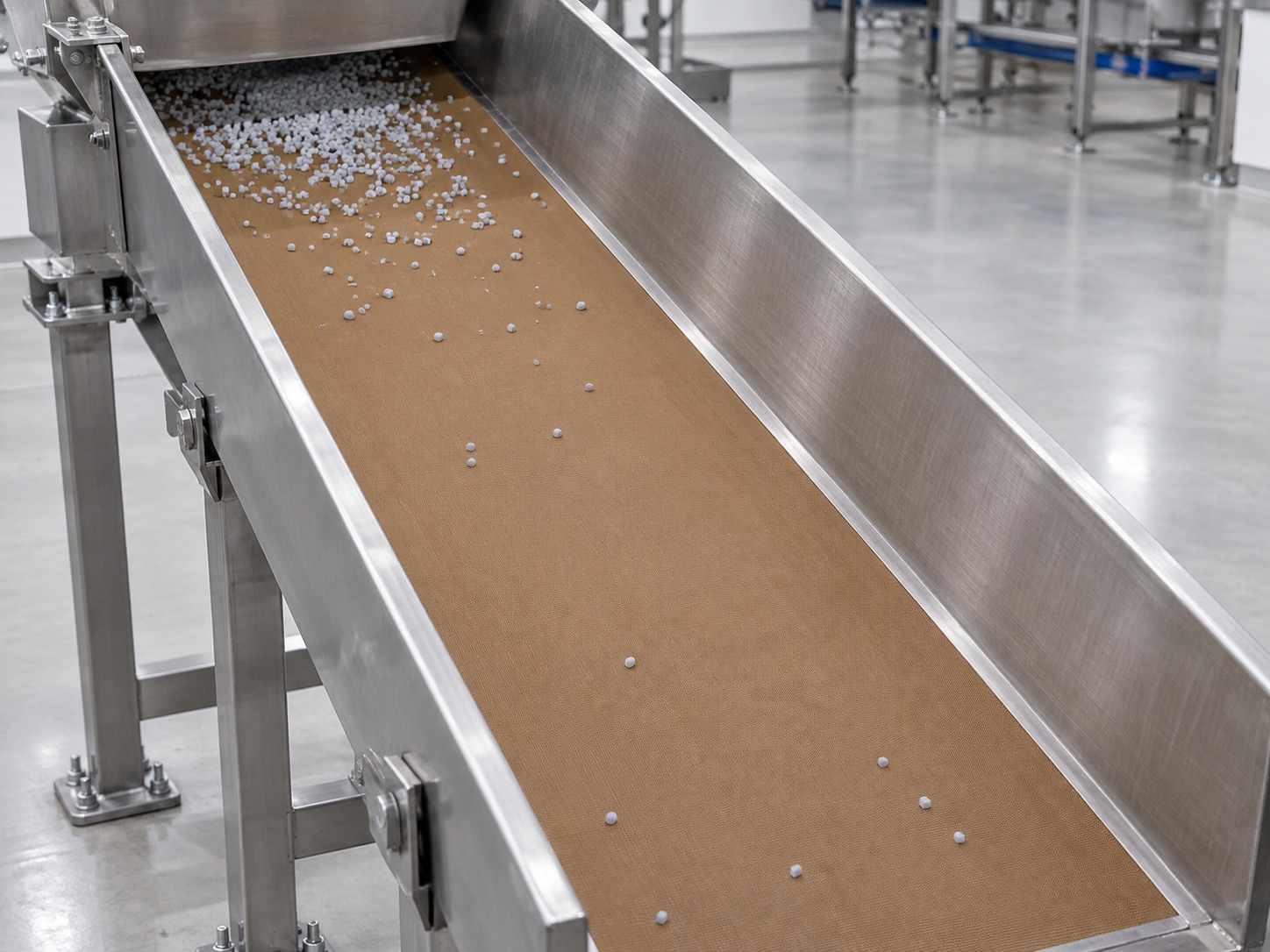

MATERIAL HANDLING
Hopper and chute lining
Creates a low-friction lining on selected flow surfaces where sticking and abrasion must be controlled.
Cycle count, pressure, temperature, substrate and any food-contact requirement must be validated separately.

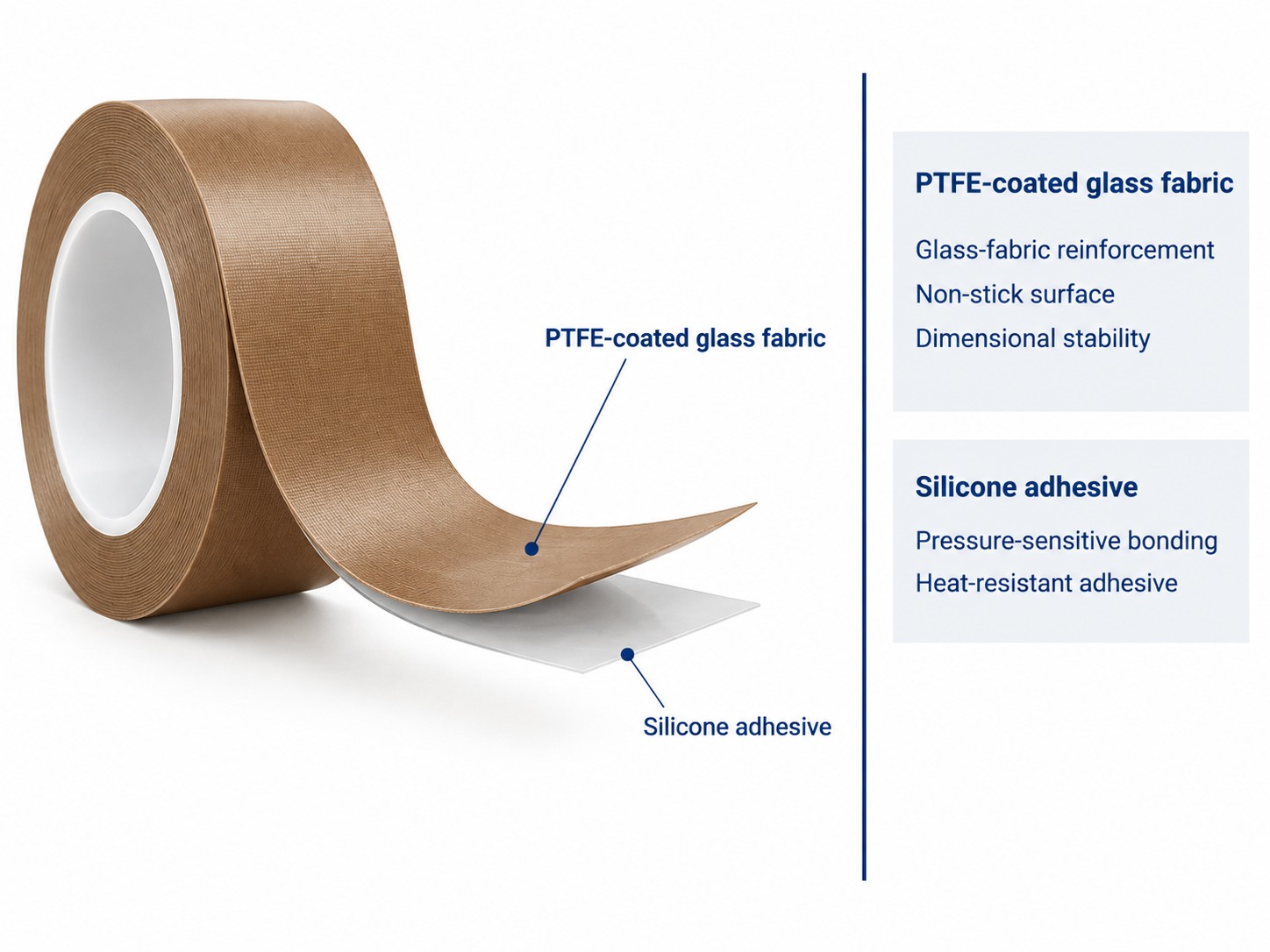

04 · TAPE CONSTRUCTION
Backing and adhesive designed as one system.
A woven glass-fabric reinforcement is coated with PTFE to form the functional surface; silicone PSA secures the composite to the approved substrate.
- PTFE-coated glass fabricReinforcement, non-stick release, low friction and abrasion resistance.
- Silicone PSAHeat-resistant contact on compatible equipment surfaces.
Illustration is enlarged for identification and does not represent actual layer-thickness ratio.
05 · SELECTION CONTEXT
The right grade starts with the process.
Bonding surface
Material, finish, cleanliness and surface energy
Thermal profile
Peak temperature, dwell time and repeated exposure
Application geometry
Flat face, edge, curve, winding or converted shape
Functional duty
Mask, insulate, secure, protect or reinforce
End condition
Remain in the assembly or remove after processing
Supply format
Width, length, core, liner, geometry and packing

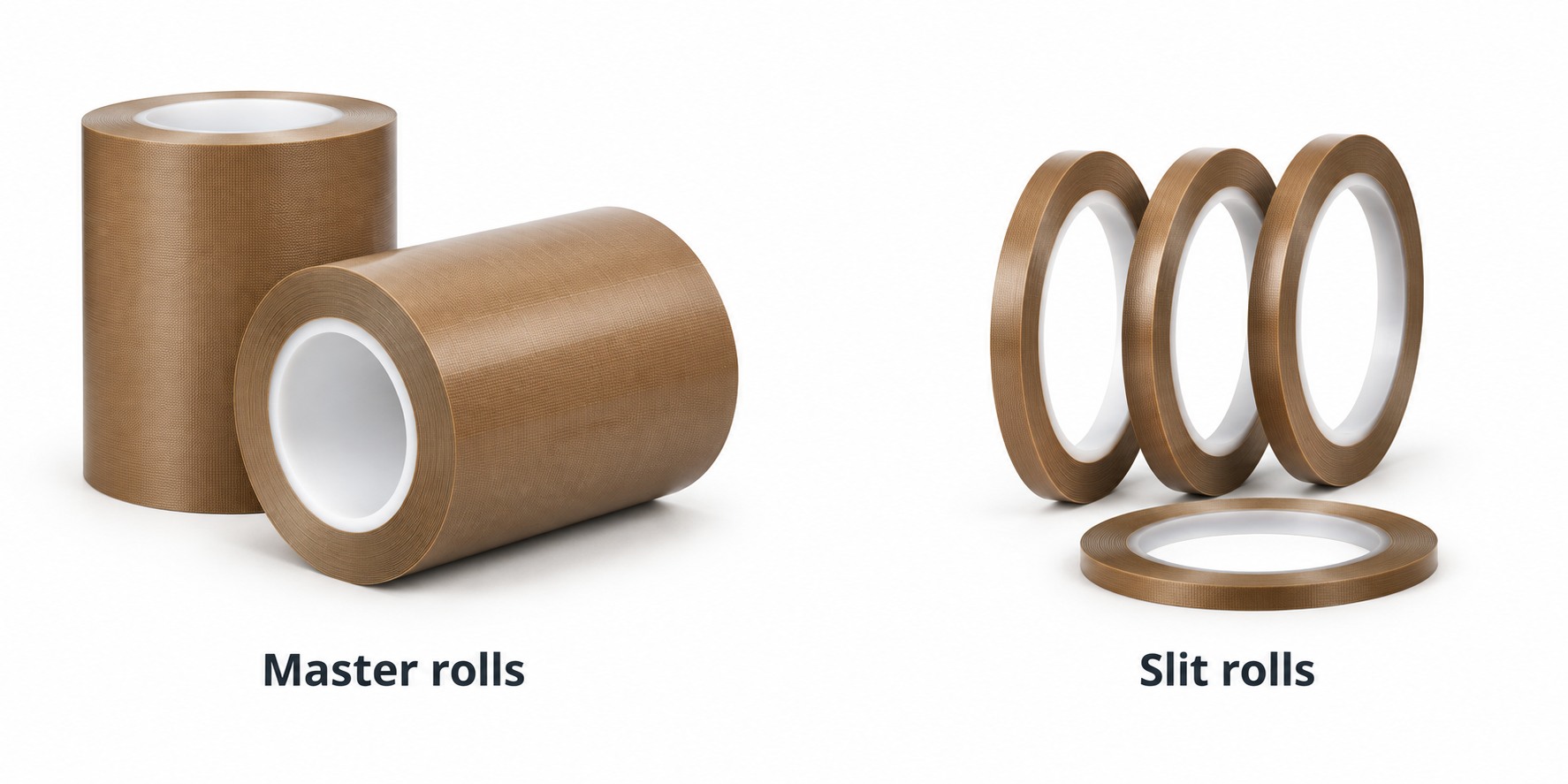

06 · SUPPLY & CONVERTING
From master roll to placement-ready part.
Available in master and slit rolls. Final width, length, core and packing are aligned with equipment maintenance and installation needs.
- Formats
- Master rolls and slit rolls
- Width
- Custom slit widths
- Core
- Confirmed by order
- Packaging
- Cartons and pallets
07 · APPLICATION PATHWAYS
Continue from the tape task to the wider material system.
01
Non-stick Contact Surfaces
A reinforced PTFE-coated fabric face for selected release interfaces subject to mechanical loading.
Explore application →02Rollers & Guides
Woven reinforcement with a low-friction surface for selected rollers, guides and material-handling contact zones.
Explore application →03Heat-Sealing Equipment
Reinforced non-stick covering for selected sealing bars and repeated contact cycles, subject to wear and process validation.
Explore application →OTHER ATERANE PRODUCTS
Compare adjacent tape constructions.
ATR-PIS SeriesPolyimide Silicone Adhesive Tape
Amber polyimide film tape with a heat-resistant silicone pressure-sensitive adhesive for process masking, electrical insulation and precision converting.
View product →
ATR-PIA SeriesPolyimide Acrylic Adhesive Tape
Polyimide film tape with heat-resistant acrylic pressure-sensitive adhesive for electrical insulation, securing and precision converting.
View product →
ATR-PET-S SeriesPolyester Silicone Adhesive Tape
PET film tape with heat-resistant silicone pressure-sensitive adhesive for temporary process masking and surface protection.
View product →APPLICATION REVIEW
Tell us what the tape needs to do.
Share the substrate, temperature and time, geometry, adhesion requirement, removal expectation and preferred roll or converted format. The relevant technical data will be provided after we confirm the product and application context.
