Stable holding
Acrylic PSA supports long-duration fixation on compatible, prepared surfaces.

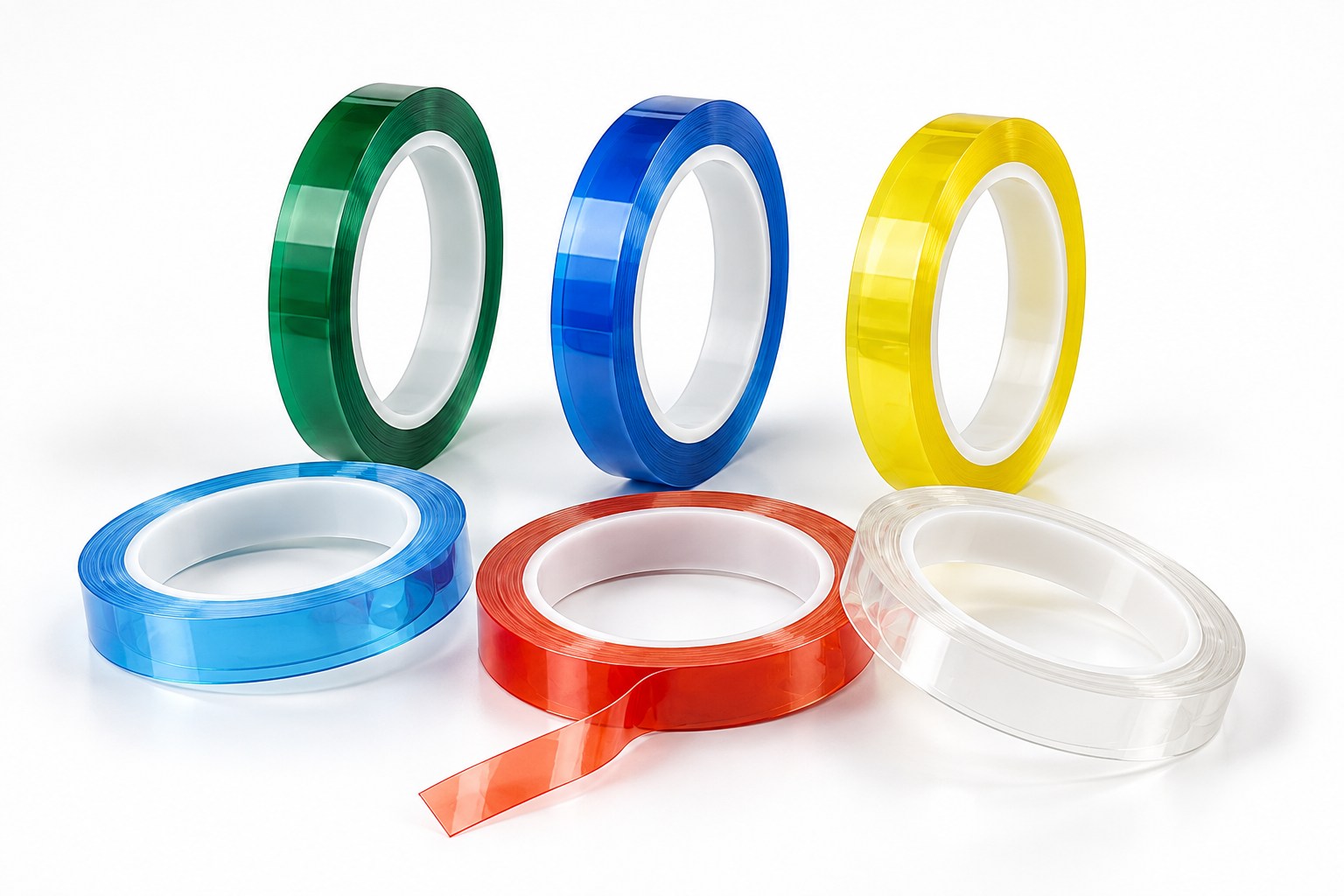

ATR-PET-A SERIES · PERMANENT FIXATION TAPE
Polyester Acrylic Adhesive Tape
Coloured polyester film with acrylic pressure-sensitive adhesive for electrical fixing, identification and long-term holding in compact assemblies.
BackingPolyester film backing
AdhesiveAcrylic pressure-sensitive adhesive
SupplyRolls & converted parts
01 · THE MATERIAL SYSTEM
Stable film support for permanent securing and identification.
ATR-PET-A pairs dimensionally stable PET film with acrylic PSA for holding, insulation and colour-coded assembly tasks where the tape is intended to remain in place.
The product is designed around permanent or long-duration fixation rather than reflow masking. Colour, surface compatibility, geometry and electrical duty are confirmed for the customer assembly.
02 · PERFORMANCE IN CONTEXT
What this construction helps an engineer control.
Visual identification
Available colours can distinguish circuits, materials or process status.
Thin insulation
PET film adds a compact insulating and protective layer.
Dimensional control
The film supports consistent winding termination and converted placement.
Ageing resistance
The acrylic system is selected for retained holding rather than temporary thermal removal.
03 · APPLICATION DIRECTIONS
See the tape at its functional interface.
Representative tasks are drawn from the supplied product documentation. They identify the tape role without prescribing a universal customer construction.

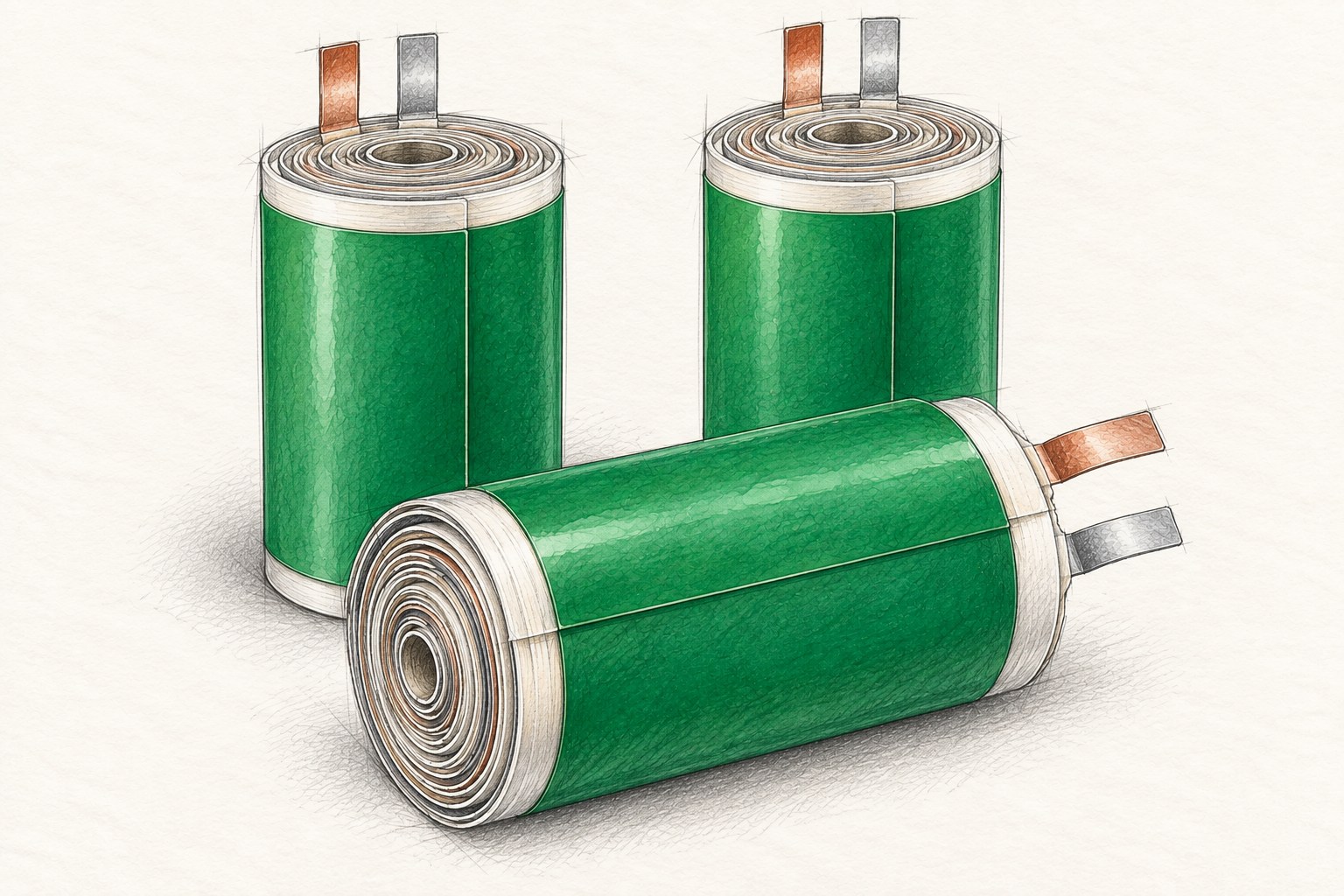

BATTERY ASSEMBLY
Cell winding termination
Secures the end of a winding or outer wrap within the approved cell construction.

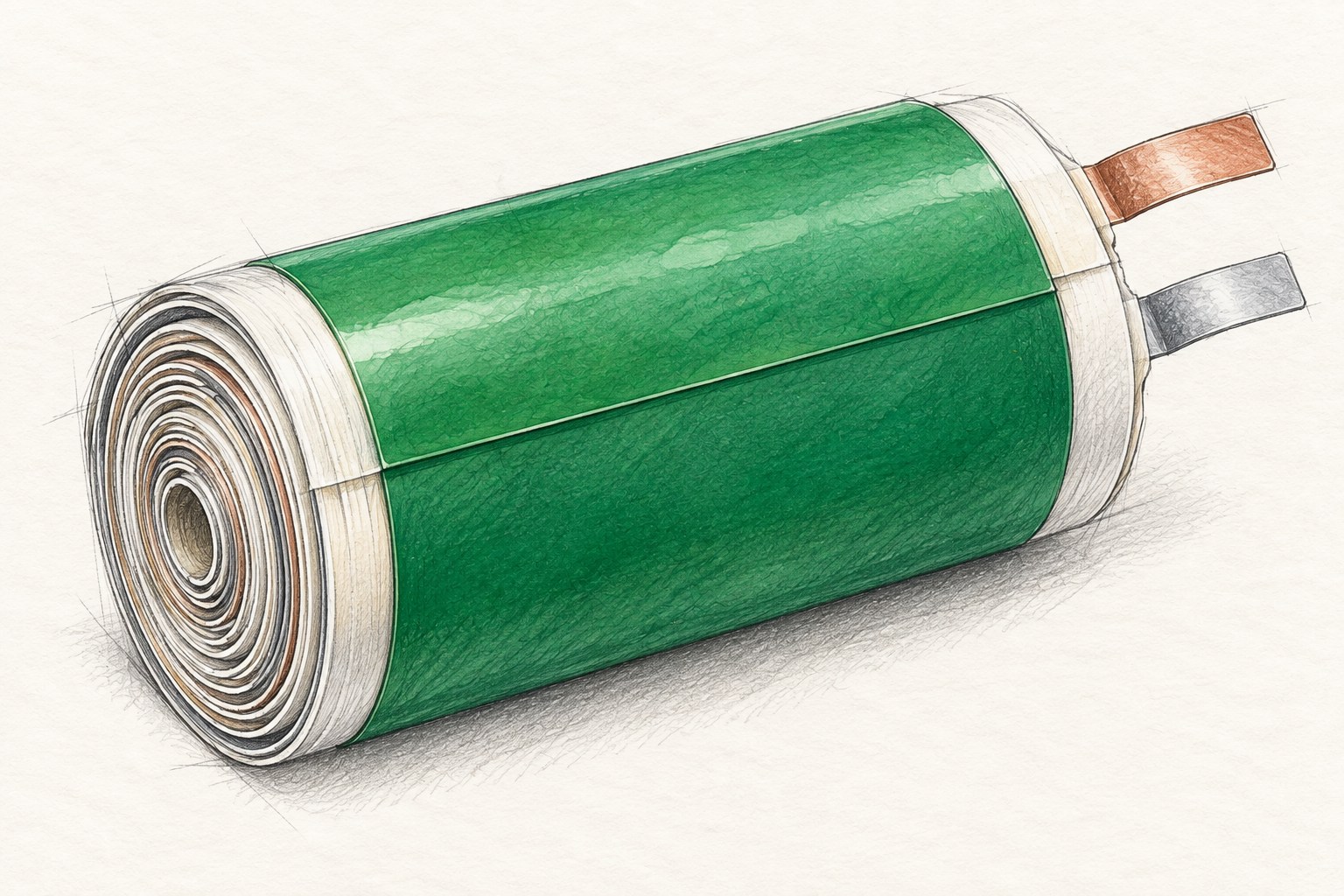

COLOUR-CODED FIXATION
Cell-edge and tab insulation
Combines local insulation, fixation and visible identification at selected battery interfaces.
Flame retardancy, chemical compatibility and electrical duty must be confirmed for the selected grade and assembly.

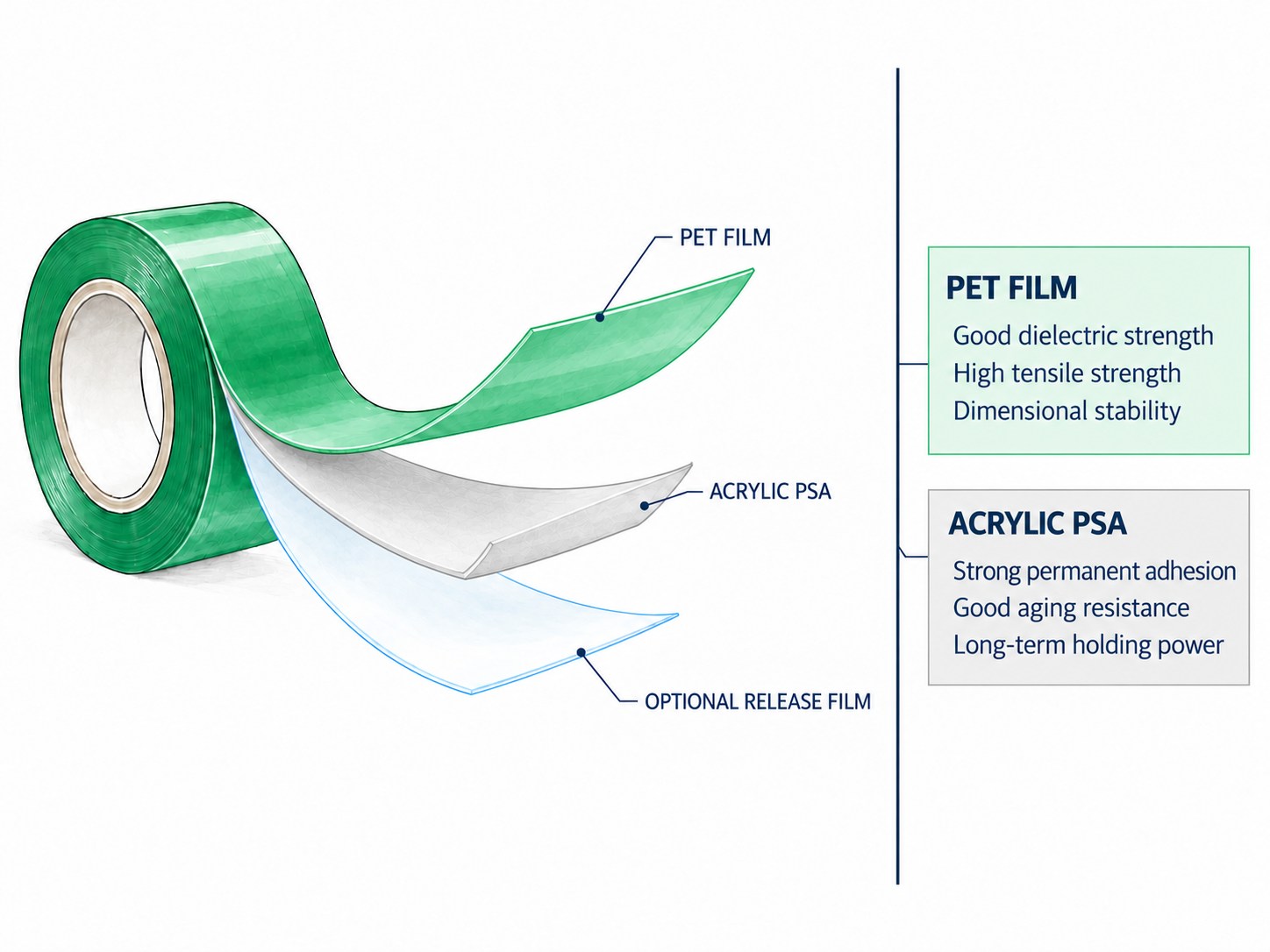

04 · TAPE CONSTRUCTION
Backing and adhesive designed as one system.
PET film forms the coloured insulating carrier; acrylic PSA supplies stable holding. A liner may be specified when die-cut or automated presentation is needed.
- PET filmThin insulation, colour identification and dimensional stability.
- Acrylic PSAPermanent holding and ageing resistance on compatible surfaces.
- Optional release linerSupports custom shapes and automated placement.
Illustration is enlarged for identification and does not represent actual layer-thickness ratio.
05 · SELECTION CONTEXT
The right grade starts with the process.
Bonding surface
Material, finish, cleanliness and surface energy
Thermal profile
Peak temperature, dwell time and repeated exposure
Application geometry
Flat face, edge, curve, winding or converted shape
Functional duty
Mask, insulate, secure, protect or reinforce
End condition
Remain in the assembly or remove after processing
Supply format
Width, length, core, liner, geometry and packing

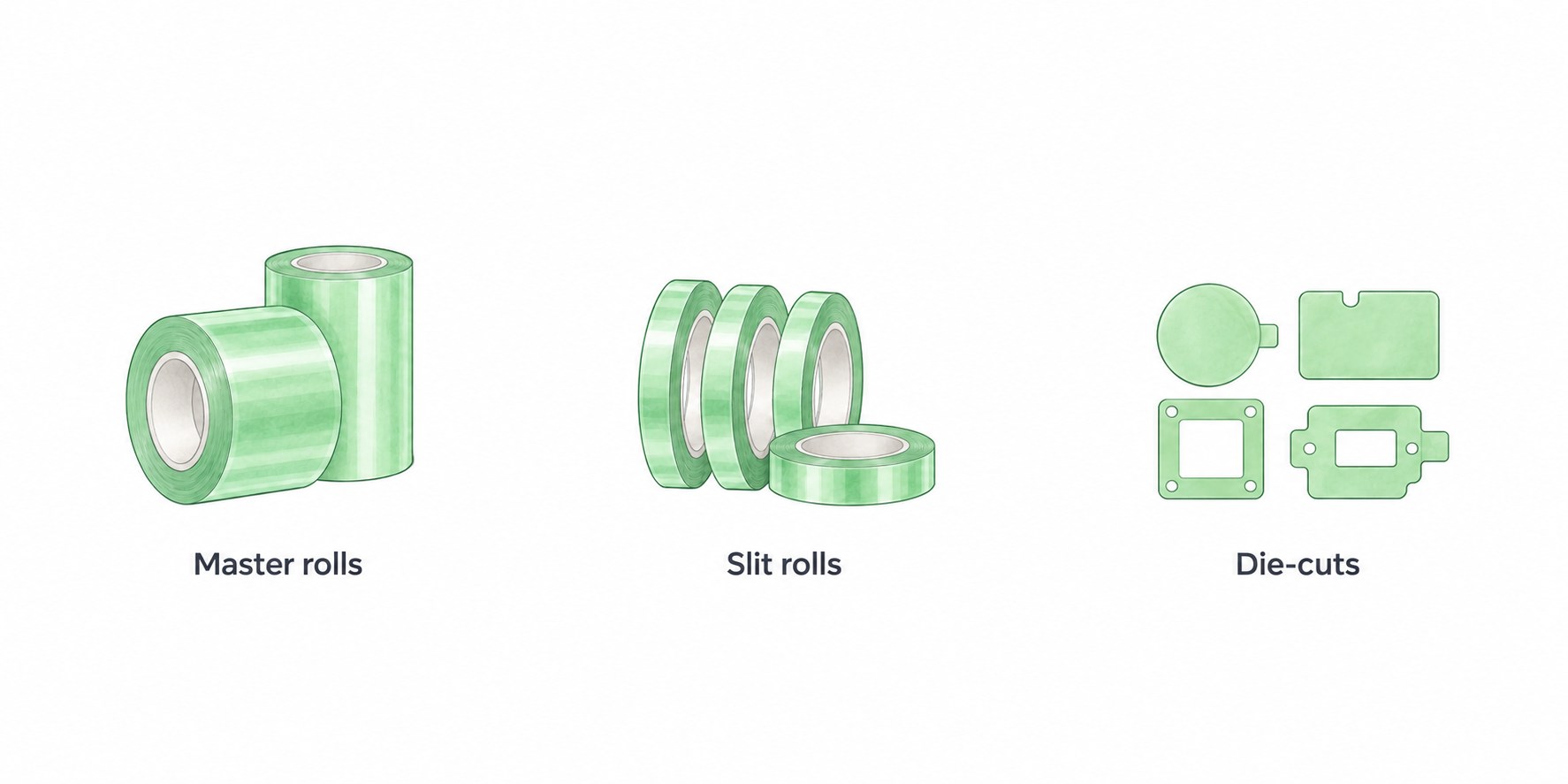

06 · SUPPLY & CONVERTING
From master roll to placement-ready part.
Supplied as wide rolls, slit rolls and die-cut parts in selected colours. Final colour, width, length, core and packing are confirmed with the order.
- Width
- 6–1020 mm or customised
- Length
- Standard or customised
- Core
- 76 mm standard core
- Colours
- Selected colours by grade
07 · APPLICATION PATHWAYS
Continue from the tape task to the wider material system.
01
Motor & Transformer
Thin film insulation, lead securing and winding termination where the acrylic tape remains in the agreed assembly.
Explore application →02Wire & Cable
Color identification, lead fixation and local harness securing on compatible surfaces.
Explore application →03Electronics & Precision Converting
Color-coded fixation and converted insulating features requiring stable placement in compact electronic assemblies.
Explore application →04Battery & New Energy
Winding termination, selected edge or tab insulation and visible identification within the approved battery construction.
